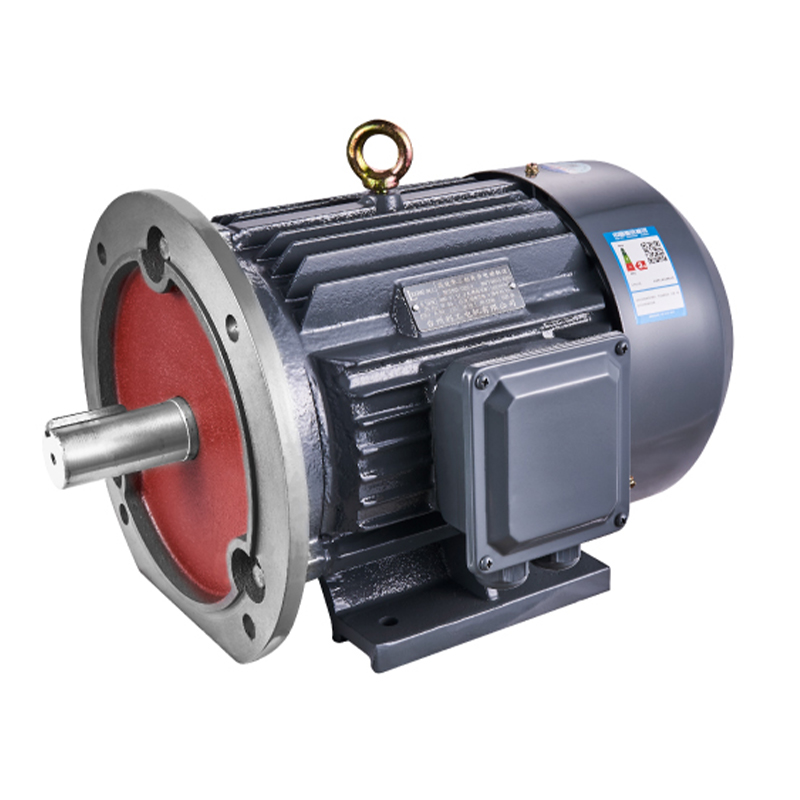

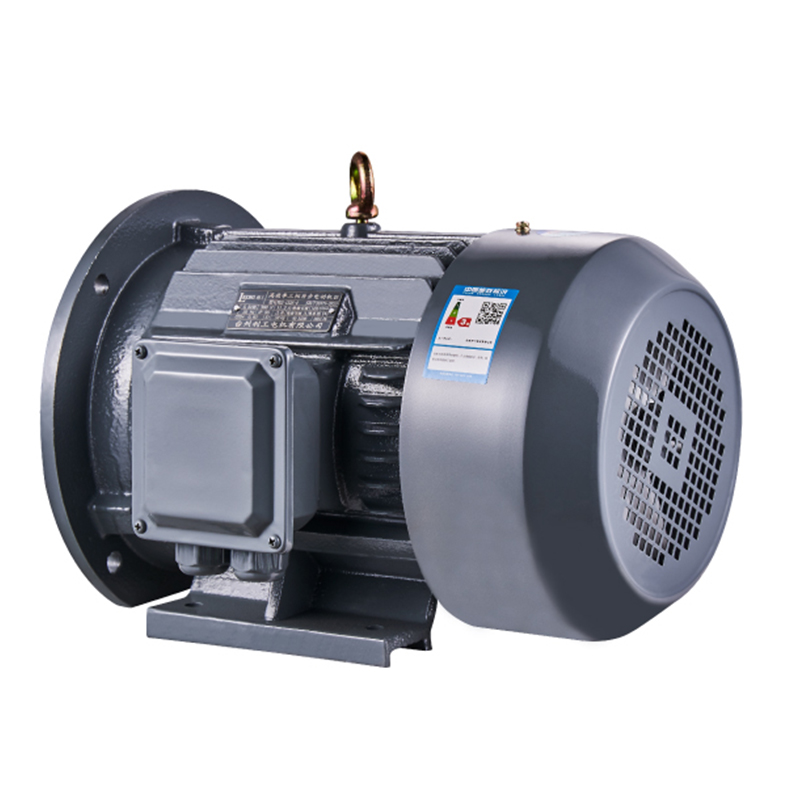

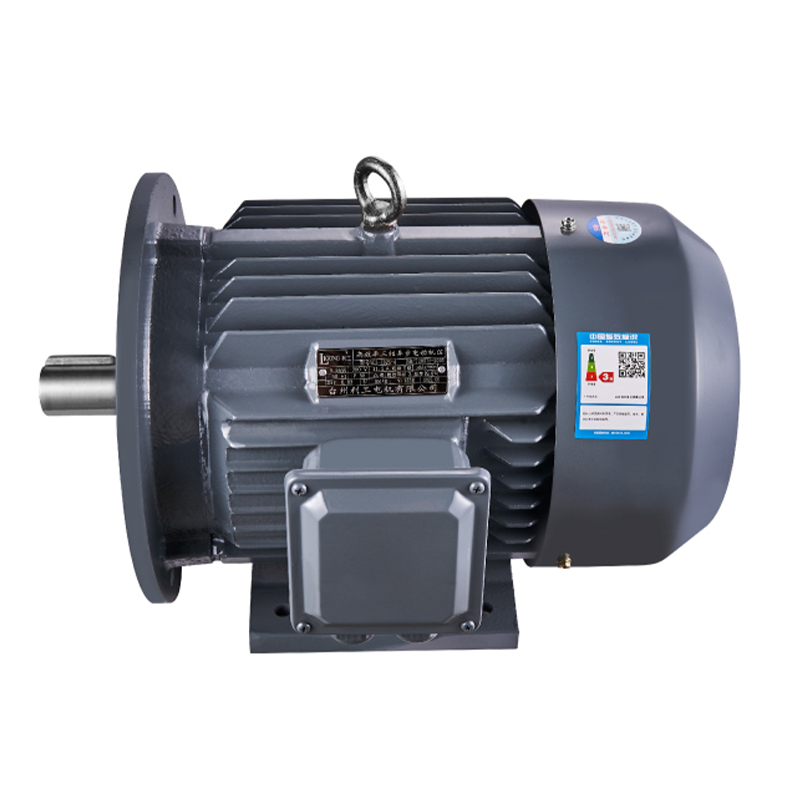

YE3 Series Three-Phase Asynchronous Motor

YE3 series three-phase asynchronous motors are newly designed, the performance of the product is fully in line with the international IEC standards，with the features of novel structure, beautiful and generous shape, low vibration, low noise, heat-resistant and improved protection level, etc. It has an internationally advanced level and is the upgraded and modernized product of the YE2 series.
It can be widely used in machine tools, fans, pumps, compressors, packaging machinery, mining machinery, construction machinery, and other types of mechanical transmission equipment.

Product Description:

Stand Centre Height:	80 ~ 355mm
Power range:	0.75 ~ 315kW
Rated voltage:	380V (other voltages on request)
Rated Frequency:	50Hz (other frequencies on request)
Protection class:	IP54 (or IP55 )
Insulation class:	Class F
Cooling method:	IC411
Operating System:	S1
Altitude:	not exceeding 1000 metres
Ambient temperature:	-15°C~ +40°C
Mounting type:	B3 (base with bottom feet, flangeless end cap) B35 (base with bottom feet, flanged end cap) B5 (base without bottom feet, flanged end cap)

Type	Rated power (kW)	Full load				Locked-rotor current	Rated Current Ist/IN	Pull-out torque
Type	Rated power (kW)	speed (r/min)	Current IN(A)	Efficiency η(%)	Power factor (Cosφ)	Rated Current Ist/IN	Rated torque Tst/TN	Rated torque Tmax/TN
YE3-80M1-2	0.75	2855	1.72	80.7	0.82	7.0	2.3	2.3
YE3-80M2-2	1.1	2855	2.43	82.7	0.83	7.3	2.2
YE3-90S-2	1.5	2875	3.22	84.2	0.84	7.6
YE3-90L-2	2.2	2875	4.58	85.9	0.85	7.6
YE3-100L-2	3.0	2880	6.02	87.1	0.87	7.8
YE3-112M-2	4.0	2900	7.84	88.1	0.88	8.3
YE3-132S1-2	5.5	2900	10.6	89.2	0.88	8.3	2.0
YE3-132S2-2	7.5	290	14.4	90.1	0.88	7.9
YE3-160M1-2	11	2940	20.6	91.2	0.89	8.1
YE3-160M2-2	15	2940	27.9	91.9	0.89	8.1
YE3-160L-2	18.5	2940	34.2	92.4	0.89	8.2
YE3-180M-2	22	2955	40.5	92.7	0.89	8.2
YE3-200L1-2	30	2965	54.9	93.3	0.89	7.6	2.0	2.3
YE3-200L2-2	37	2965	67.4	93.7	0.89	7.6
YE3-225M-2	45	2970	80.8	94,0	0.90	7.7
YE3-250M-2	55	2975	98.5	4.3	0.90	7.7
YE3-280S-2	75	2975	134	94.7	0.90	7.1	1.8	2.3
YE3-280M-2	90	2975	60	95.0	0.90	7.1
YE3-315S-2	110	2980	195	95.2	0.90	7.1
YE3-315M-2	132	2980	234	95.4	0.90	7.0
YE3-315L1-2	160	2980	279	95.6	0.9	7.2
YE3-315L-2	85	2980	323	95.7	0.9	7.2		2.2
YE3-315L2-2	200	2980	349	95.8	0.9	7.2		2.2
YE3-355M1-2	220	2980	88	95.8	0.90	7.2	1.6	2.2
YE3-355M2-2	250	2980	441	95.8	0.90	7.2
YE3-355L1-2	280	2980	493	95.8	0.90	7.2
YE3-355L-2	315	2980	555	95.8	0.90	7.2
YE3-80M2-4	0.75	1400	1.84	82.5	0.75	6.6	2.3	2.3
YE3-90S-4	1.1	1425	2.61	84.1	0.76	6.8
YE3-90L-4	1.5	1425	3.47	85.3	0.77	7.0
YE3-100L1-4	2.2	1440	4.76	86.7	0.81	7.6
YE3-100L2-4	3.0	440	6.34	87.7	0.82	7.6
YE3-112M-4	4.0	1450	8.37	88.6	0.82	7.8	2.2
YE3-132S-4	5.5	1455	11.2	89,6	0.83	7.9	2.0
YE3-132M-4	7.5	1455	15.0	90.4	0.84	7.5	2.0
YE3-160M-4	11	1465	21.5	91.4	0.85	7.7	2.2
YE3-160L-4	15	1465	28.8	92.1	0.86	7.8	2.2
YE3-180M-4	18.5	1470	35.3	92.6	0.86	7.8
YE3-180L-4	22	1475	41.8	93.0	0.86	7.8	2.0
YE3-200L-4	30	1475	56.6	93.6	0.86	7.3
YE3-225S-4	37	1480	69.6	93.9	0.86	7.4
YE3-225M-4	45	1480	84.4	94.2	0.86	7.4
YE3-250M-4	55	1480	103	94.6	0.86	7.4	2.2
YE3-280S-4	75	1485	136	95.0	0.88	6.9	2.0
YE3-280M-4	90	485	63	95.2	0.88	6.9
YE3-315S-4	110	1485	197	95.4	0.89	7.0		2.2
YE3-315M-4	132	1485	236	95.6	0.89	7.0
YE3-315L1-4	160	485	285	95.8	0.89	7.1
YE3-315L-4	185	1485	329	95.9	0.89	7.1
YE3-315L2-4	200	1485	352	96.0	0.90	7.1
YE3-355M1-4	220	1490	387	96.0	0.90	7.1
YE3-355M-4	250	1490	445	96.0	0.89	7.1
YE3-355L1-4	280	1490	498	96.0	0.89	7.1
YE3-355L-4	315	1490	560	96.0	0.89	7.1
YE3-90S-6	0.75	935	2.03	78.9	0.71	6.0	2.0	2.1
YE3-90L-6	1.1	940	2.83	81.0	0.73	6.0
YE3-100L-6	1.5	945	3.78	82.5	0.73	6.5
YE3-112M-6	2.2	950	5.36	84.3	0.74	6.6
YE3-132S-6	3.0	960	7.20	85.6	0.74	6.8
YE3-132M1-6	4.0	960	9.46	86.8	0.74	6.8
YE3-132M2-6	5.5	960	12.7	88.0	0.75	7.0
YE3-160M-6	7.5	970	16.2	89.1	0.79	7.0
YE3-160L-6	11	970	23.1	90.3	0.80	7.2
YE3-180L-6	15	975	30.9	91.2	0.81	7.3
YE3-200L1-6	18.5	975	37.8	91.7	0.81	7.3
YE3-200L2-6	22	975	44.8	92.2	0.8	7.4
YE3-225M-6	30	985	59.1	92.9	0.83	6.9
YE3-250M-6	37	985	71.7	93.3	0.84	7.1
YE3-280S-6	45	985	85.8	93.7	0.85	7.3		2.0
YE3-280M-6	55	985	103	94.1	0.86	7.3
YE3-315S-6	75	990	143	94.6	0.84	6.6
YE3-315M-6	90	990	170	94.9	0.85	6.7
YE3-315L1-6	110	990	207	95.1	0.85	6.7
YE3-315L2-6	132	990	244	95.4	0.86	6.8
YE3-355M1-6	160	990	296	95.6	0.86	6.8	1.8
YE3-355M2-6	185	390	342	95.7	0.86	6.8
YE3-355M3-6	200	990	365	95.8	0.87	6.8
YE3-355L1-6	220	990	401	95.8	0.87	6.8
YE3-355L-6	250	990	456	95.8	0.87	6.8
YE3-355L2-6	280	990	510	95.8	0.87	6.8
