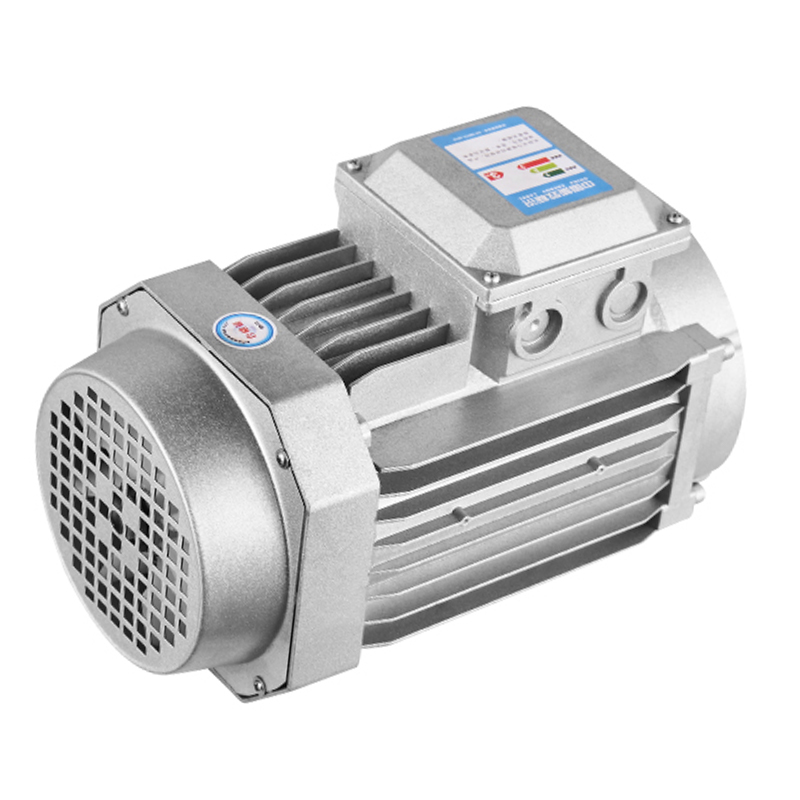

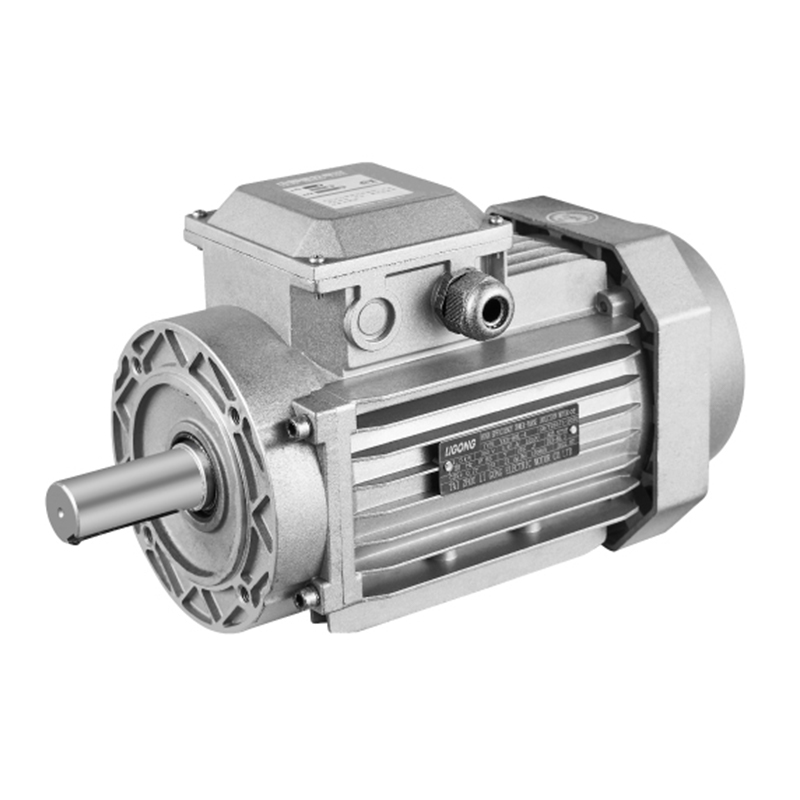

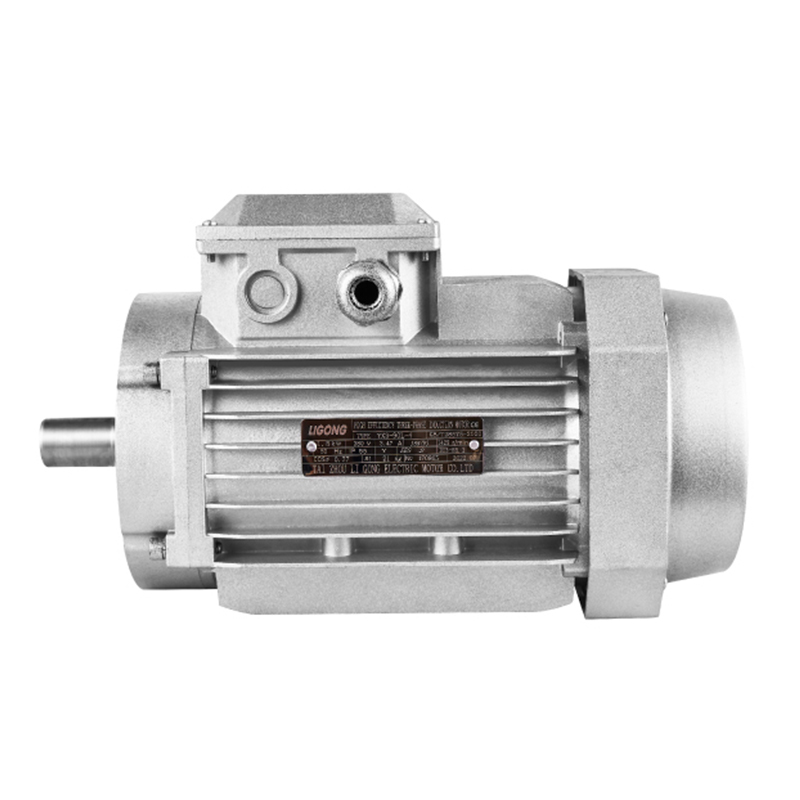

Aluminium-Shelled Square-Case Series Motors

The Aluminium-Shelled Square-Case Series motors are fully enclosed self-fanning squirrel-cage three-phase asynchronous motors that employ national unified design standards. It features high efficiency and energy savings, high starting torque, low noise, low vibration, high reliability, IEC standard power levels and mounting dimensions, and ease of use and maintenance.
It can be widely used in machine tools, fans, pumps, compressors, packaging machinery, mining machinery, construction machinery and other types of mechanical transmission equipment.

Inquiry
PREV: No previous articleNEXT: No next article

+86-576-82539088

[email protected]

Type

Rated

power

Currant
IN(A)

speed

（r/min）

Efficiency

η(%)

Power

factor

(Cosφ)

Rated

torque

TnN.m

Locked-rolo

torque

Pull-out

torque

Locked-rotor

current

inertia

10-3kgm²

noise

dB(A)

weight

(kg)

kW

HP

380W

400V

415V

Rated torque

Tst/TN

Rated torque

Tmax/TN

Rated  Current

Ist/IN

YE2-63M1-2

0.18

0.25

0.53

0.50

0.49

2720

65

0.8

0.63

2.2

2.2

5.5

 0.00031

58

4.8

YE2-63M2-2

0.25

0.35

0.69

 0.66

0.63

2720

68

0.81

0.88

2.2

2.2

5.5

0.0006

58

5.1

YE2-71M1-2

0.37

0.5

0.99

0.94

0.91

2740

70

0.81

1.29

2.2

2.2

6.1

0.00075

61

6.0

YE2-71M2-2

0.55

0.75

1.4

1.33

1.28

2740

73

0.82

1.92

2.2

2.3

6.1

0.0009

61

6.5

YE2-80M1-2

0.75

1.0

1.77

1.68

1.62

2830

77.4

0.83

2.5

2.2

2.3

6.1

0.0012

64

8.7

YE2-80M2-2

1.1

1.5

2.50

2.38

2.29

2830

79.6

0.84

3.71

2.2

2.3

7.0

0.0014

64

9.5

YE2-90S-2

1.5

2.0

3.34

3.17

3.06

2840

81.3

0.84

5.04

2.2

2.3

7.0

0.0029

69

11.8

YE2-90L-2

2.2

3.0

4.73

4.49

4.33

2840

83.2

0.85

7.4

2.2

2.3

7.0

0.0055

69

13.5

YE2-100L-2

3.0

4.0

6.19

5.88

5.67

2870

84.6

0.87

9.98

2.2

2.3

7.5

0.0109

73

21

YE2-112M-2

4.0

5.5

8.05

7.65

7.37

2890

85.8

0.88

13.22

2.2

2.3

7.5

0.0126

74

28

YE2-132S1-2

5.5

7.5

10.9

10.4

10.0

2900

87

0.88

18.11

2.2

2.3

7.5

0.0377

77

39

YE2-132S2-2

7.5

10

4.7

14.0

13.5

2900

88.1

0.88

24.7

2.2

2.3

7.5

0.0495

77

44.5

YE2-132M-2

9

12

17.6

16.6

16.0

2900

88.1

0.88

29.6

2.2

2.3

7.5

0.051

77

46.5

YE2-160M1-2

11

15

21

20.0

19.2

2930

89.4

0.89

35.85

2.2

2.3

7.5

0.055

83

69.2

YE2-160M2-2

15

20

28.4

27.0

26.0

2930

90.3

0.89

48.89

2.2

2.3

7.5

0.075

83

78

YE2-160L-2

18.5

25

34.4

32.7

31.5

2930

90.9

0.90

60.3

2.2

2.3

7.5

0.124

83

88.5

YE2-63M1-4

0.12

0.18

0.44

0.42

0.40

1310

57

0.72

0.87

2.1

2.2

4.4

0.0005

48

4.8

YE2-63M2-4

0.18

0.25

0.62

0.59

0.57

1310

60

0.73

1.31

2.1

2.2

4.4

0.0006

48

5.1

YE2-71M1-4

0.25

0.35

0.79

0.75

0.72

1330

65

0.74

1.80

2.1

2.2

5.2

0.0008

53

6.0

YE2-71M2-4

0.37

0.5

1.12

1.06

1.03

1330

67

0.75

2.66

2.1

2.2

5.2

0.0013

53

6.3

YE2-80M1-4

0.55

0.75

1.57

1.49

1.44

1390

71

0.75

3.78

2.4

2.3

5.2

0.0018

58

9.4

YE2-80M2-4

0.75

1.0

1.88

1.79

1.72

1390

73

0.76

5.15

2.3

2.3

6.0

0.0021

58

10.8

YE2-90S-4

1.1

1.5

2.67

2.54

2.44

1400

75

0.77

7.5

2.3

2.3

6.0

0.0023

59

12

YE2-90L-4

1.5

2.0

3.48

3.31

3.19

1400

78

0.79

10.23

2.3

2.3

6.0

0.0027

59

13.8

YE2-100L1-4

2.2

3.0

4.9

4.66

4.49

1430

80

0.81

14.69

2.3

2.3

7.0

0.0054

61

21

YE2-100L2-4

3.0

4.0

6.5

6.18

5.95

1430

82

0.82

20.03

2.3

2.3

7.0

0.0067

61

23.5

YE2-112M-4

4.0

5.5

8.56

8.13

7.84

1440

84

0.82

26.53

2.3

2.3

7.0

0.0095

62

29.5

YE2-132S-4

5.5

7.5

11.5

10.9

10.5

1440

85

0.83

36.48

2.3

2.3

7.0

0.0214

69

41

YE2-132M-4

7.5

10

15.3

4.5

14.0

1440

87

0.84

49.74

2.3

2.3

7.0

0.0296

69

47.5

YE2-132M1-4

9

12

18.3

17.4

16.8

1440

87

0.84

59.69

2.3

2.3

7.0

0.03806

69

48.5

Y2-160M-4

11

15

22.2

21.1

20.3

1460

88

0.84

71.95

2.2

2.3

7.0

0.0747

72

72.5

Y2-160L-4

15

20

29.6

28.1

27.1

1460

89

0.85

98.12

2.2

2.3

7.5

0.0918

72

85.6

YE2-63M1-6

0.09

0.12

0.52

0.49

0.48

840

44

0.6

1.02

1.8

1.9

3.5

0.00025

48

4.8

YE2-63M2-6

0.12

0.18

0.63

0.60

0.58

840

48

0.6

1.36

1.8

1.9

3.5

0.0004

48

5.1

YE2-71M1-6

0.18

0.25

0.74

0.70

0.68

850

56

0.66

2.02

1.9

2.0

4.0

0.0011

49

6.0

YE2-71M2-6

0.25

0.37

0.95

0.90

0.87

850

59

0.68

2.81

1.9

2.0

4.0

0.0014

49

6.3

YE2-80M1-6

0.37

0.5

1.3

1.24

1.19

890

62

0.7

3.97

1.9

2.0

4.7

0.0016

51

8.9

YE2-80M2-6

0.55

0.75

1.79

1.70

1.64

890

65

0.72

5.90

1.9

2.1

4.7

0.0019

51

10.4

YE2-90S-6

0.75

1.0

2.09

1.99

1.91

910

69

0.72

7.87

2.0

2.1

5.5

0.0029

54

12.1

YE2-90L-6

1.1

1.5

2.93

2.78

2.68

910

72

0.73

11.54

2.0

2.1

5.5

0.0035

54

13.7

YE2-100L-6

1.5

2.0

3.81

3.62

3.49

940

76

0.75

15.24

2.0

2.1

5.5

0.0069

58

23

YE2-112M-

2.2

3.0

5.38

5.11

4.93

940

79

0.76

22.35

2.0

2.1

6.5

0.014

62

28.2

YE2-132S-6

3.0

4.0

7.2

6.84

6.59

960

81

0.76

29.84

2.1

2.1

6.5

0.0286

66

40.3

YE2-132M1-6

4.0

5.5

9.45

8.98

8.65

960

82

0.76

39.79

2.1

2.1

6.5

0.0357

66

43

YE2-132M2-6

5.5

7.5

12.6

12.0

11.5

960

84

0.77

54.71

2.1

2.1

6.5

0.0449

66

47.2

YE2-160M-6

7.5

10

17

16.2

15.6

970

87

0.77

73.84

2.0

2.1

6.5

0.081

70

70.6

YE2-160L-6

11

15

24.2

23.0

22.2

970

89

0.78

108.3

2.0

2.1

6.5

0.116

70

85

YE2-71M1-8

0.09

0.12

0.6

0.57

0.55

600

40

0.57

1.43

1.8

1.9

2.8

0.0008

48

6

YE2-71M2-8

0.12

0.18

0.71

0.67

0.65

600

45

0.57

1.91

1.8

1.9

2.8

0.001

48

6.3

YE2-80M1-8

0.18

0.25

0.88

0.84

0.81

630

51

0.61

2.73

1.8

1.9

3.3

0.0025

49

8.9

YE2-80M2-8

0.25

0.35

1.15

1.09

1.05

640

54

0.61

3.73

1.8

1.9

3.3

0.003

49

10.4

YE2-90S-8

0.37

0.5

1.49

1.42

1.36

660

62

0.61

5.35

1.8

1.9

4.0

0.0051

53

12.1

YE2-90L-8

0.55

0.75

2.17

2.06

1.99

660

63

0.61

7.96

1.8

2.0

4.0

0.0065

53

13.7

YE2-100L1-8

0.75

1.0

2.4

2.28

2.20

680

71

0.67

10.53

1.8

2.0

4.0

0.0095

56

23

YE2-100L2-8

1.1

1.5

3.32

3.15

3.04

680

73

0.69

15.45

1.8

2.0

5.0

0.011

56

25.1

YE2-112M-8

1.5

2.0

4.4

4.18

4.03

680

75

0.69

21.07

1.8

2.0

5.0

0.0245

59

28.2

YE2-132S-8

2.2

3.0

6.04

5.74

5.53

710

78

0.71

29.59

1.8

2.0

6.0

0.0314

61

40.3

YE2-132M-8

3.0

 4.0

7.9

7.51

7.23

710

79

0.73

40.35

1.8

2.0

6.0

0.0395

61

45

YE2-160M1-8

4.0

5.5

10.3

9.79

9.43

720

81

0.7

53.06

1.9

2.0

6.0

0.0753

65

68.5

YE2-160M2-8

5.5

7.5

13.6

12.9

12.5

720

83

0.74

72.95

2.0

2.0

6.0

0.0931

65

65

YE2-160L-8

7.5

10

17.8

16.9

16.3

720

85.5

0.75

 99.5

2.0

2.0

6.0

0.126

65

86.2

Product Description:

Stand Centre Height:

 63 ~ 132mm

Power range:

 0.12 ~ 9kW

Rated Voltage:

 380V (other voltages on request)

Rated Frequency:

 50Hz (other frequencies on request)

Insulation class:

 Class F (Temperature rise is assessed at 80K)

Cooling method:

 IC411

Protection class:

 IP55

Altitude:

 not more than 1000 metres

Ambient temperature:

 -15°C~ +40°C

Operating system:

 S1

Mounting type:

B3 (chassis with bottom feet, flangeless end cap)
B35 (chassis with bottom feet, flanged end cap)
B5 (chassis without bottom feet, flanged end cap)

Type

Rated power

Full load

Locked-rotor current

Locked-rotor torque

Pull-out torque

Load noise

dB(A)

KW

HP

SPeed

(min)

Current

IN(A)

Efficiency

η(%)

Power factor

(Casφ)

Rated Current

ISt/IN

Rated torque

Tst/TN

Rated torque

Tmax/TN

MS561-2

0.09

0.12

2710

0.3

60

0.76

5.0

2.2

2.2

58

MS562-2

0.12

0.16

2710

0.37

63

0.78

5.0

2.2

2.2

58

MS631-2

0.18

0.24

2720

0.53

65

0.8

5.5

2.2

2.2

61

MS632-2

0.25

0.33

2720

0.69

68

0.81

5.5

2.2

2.2

61

MS711-2

0.37

0.5

2740

0.99

70

0.81

6.1

2.2

2.2

64

MS712-2

0.55

0.75

2740

1.4

73

0.82

6.1

2.2

2.3

64

MS801-2

0.75

1.0

2830

1.83

75

0.83

6.1

2.2

2.3

67

MS802-2

1.1

1.5

2830

2.58

77

0.84

7.0

2.2

2.3

67

MS90S-2

1.5

2.0

2840

3.43

79

0.84

7.0

2.2

2.3

72

MS90L-2

2.2

3.0

2840

4.85

81

0.85

7.0

2.2

2.3

72

MS100L-2

3.0

4.0

2870

6.31

83

0.87

7.5

2.2

2.3

76

MS112M-2

4.0

5.5

2890

8.12

85

0.88

7.5

2.2

2.3

77

MS561-4

0.06

0.08

1300

0.27

50

0.68

4.4

2.1

2.2

50

MS562-4

0.09

0.12

1300

0.36

54

0.7

4.4

2.1

2.2

50

MS631-4

0.12

0.16

1310

0.44

57

0.72

4.4

2.1

2.2

52

MS632-4

0.18

0.24

1310

0.62

60

0.73

4.4

2.1

2.2

52

MS711-4

0.25

0.33

1330

0.79

65

0.74

5.2

2.1

2.2

55

MS712-4

0.37

0.5

1330

1.12

67

0.75

5.2

2.1

2.2

55

MS801-4

0.55

0.75

1390

1.57

71

0.75

5.2

2.4

2.3

58

MS802-4

0.75

1.0

1390

2.05

73

0.76

6.0

2.3

2.3

58

MS90S-4

1.1

1.5

1400

2.89

75

0.77

6.0

2.3

2.3

61

MS90L-4

1.5

2.0

1400

3.7

78

0.79

6.0

2.3

2.3

61

MS100L1-4

2.2

3.0

1430

5.16

80

0.81

7.0

2.3

2.3

64

MS100L2-4

3.0

4.0

1430

6.78

82

0.82

7.0

2.3

2.3

64

MS112M-4

4.0

5.5

1440

8.82

84

0.82

7.0

2.3

2.3

65

MS711-6

0.18

0.24

890

0.74

56

0.66

4.0

1.9

2.0

52

MS712-6

0.25

0.33

890

0.95

59

0.68

4.0

1.9

2.0

52

MS801-6

0.37

0.5

890

1.3

62

0.7

4.7

1.9

2.0

56

MS802-6

0.55

0.75

890

1.79

65

0.72

4.7

1.9

2.1

56

MS90S-6

0.75

1.0

910

2.29

69

0.72

5.5

2.0

21

59

MS90L-6

1.1

1.5

910

3.18

72

0.73

5.5

2.0

2.1

59

MS100L-6

1.5

2.0

940

3.95

76

0.76

5.5

2.0

2.1

61

MS112M-6

2.2

3.0

940

5.57

79

0.76

6.5

2.0

2.1

64

Aluminium-Shelled Square-Case Series Motors

 Aluminium-Shelled Square-Case Series Motors

We are a professional motor manufacturer.

Zhejiang Ligong Motor Co., Ltd. is located in Luqiao District, Taizhou City. We are a trustworthy Aluminium-Shelled Square-Case Series Motors manufacturer and Aluminium-Shelled Square-Case Series Motors company, We regard customers' high requirements for product quality as the driving force for the company's development, strive to create a corporate brand with results, regard honest service as the company's unswerving commitment, and create advanced corporate culture as the company's unremitting pursuit goal.

Our company is driven by technology, guided by the market, and committed to meeting customer demands. We adhere to the philosophy that customer satisfaction equals quality assurance, and continuously strive for excellence through practical innovation. Our motors are not only aesthetically pleasing, but also have less vibration and low noise levels, while maintaining reasonable prices. They are widely used in industries such as machinery, textiles, printing and dyeing, food, construction materials, and metallurgy. We serve the world with technology and create the future with our strength. Guided by our core values of quality, integrity, and competitive pricing, we wholeheartedly welcome both new and existing customers to discuss cooperation opportunities.

Zhejiang Ligong Motor Co., Ltd.

Certifications

After years of unremitting efforts, Ligong's R&D team
has achieved a number of technical achievements in
the field of motor manufacturing, ensuring the integrity
of the company's technical processes and product
diversity, and forming a deep technical reserve.
Zhejiang Ligong Motor Co., Ltd.
Zhejiang Ligong Motor Co., Ltd.
Zhejiang Ligong Motor Co., Ltd.
NEWS CENTER
Zhejiang Ligong Motor Co., Ltd.

Our products are widely used in small machinery, medical equipment, food and medicine machinery, ventilation equipment, clothing machinery and other electrical equipment.
